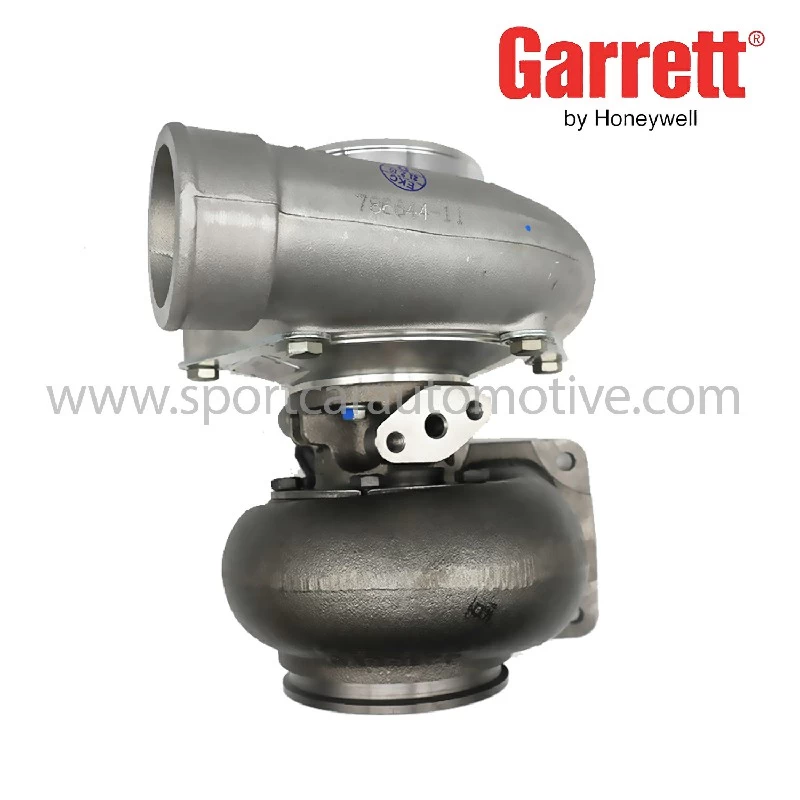

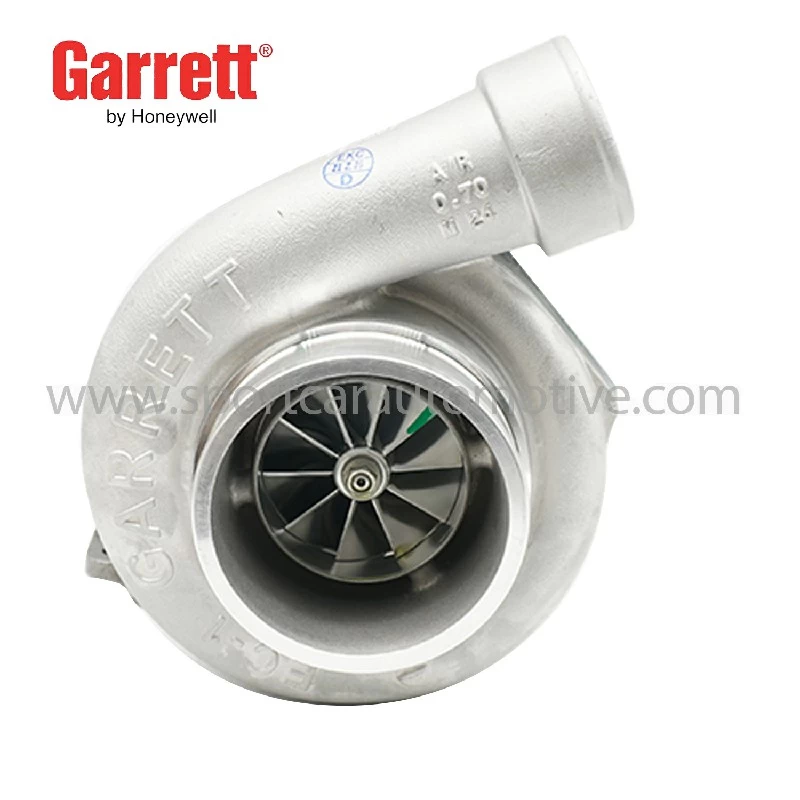

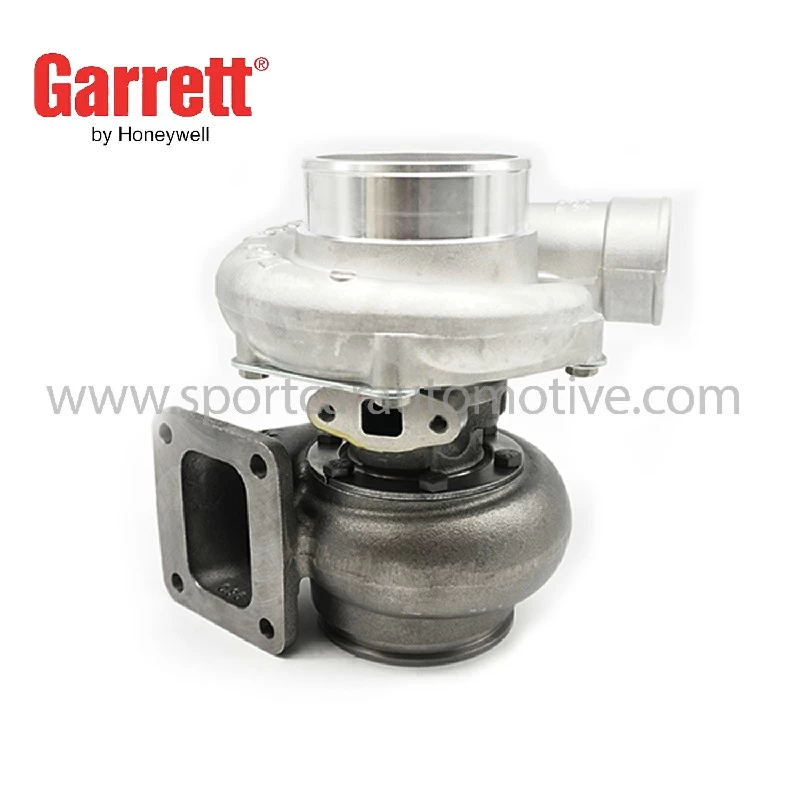

TURBOCHARGER SUPER CORE (67.3MM IND)WITH HOUSING A/R0.96 GARRRET GTW3884JB (SKU 31-076)

(0)

Out of stock

AED4,700.00

Quantity

Total price: AED4,700.00

Tax: AED0.00

Details Description

GTW Series - Garrett's performance solution for the popular size turbos. Great performance at competitive prices!

Garrett GTW Features:
Advanced aerodynamic compressor wheel
Forged aluminum compressor wheel
Available in ball bearing or journal bearing CHRA
T3 and T4 turbine housing options
GTW turbo models from 700 to 950+HP!

PRODUCT DESCRIPTION:
GTW3884JB journal bearing turbo. 950HP potential flow.

PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 67.3mm
Compressor Wheel Exducer: 84.4mm
Compressor Wheel Trim: 64
Turbine Wheel Inducer: 74.2mm
Turbine Wheel Exducer: 64.6mm
Turbine Wheel Trim: 76
Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.

APPLICATION NOTES:
NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.

Turbo Model	Comp. Wheel Inducer (mm)	Comp. Wheel Exducer (mm)	Comp. Wheel Trim	Turbine Wheel Inducer (mm)	Turbine Wheel Exducer (mm)	Turbine Wheel Trim	Bearing Type	Flow Capacity
GTW3884JB (aka GTW6765JB)	67.3	84.4	64	74.2	64.6	76	JB	950 HP

APPLICABLE GARRETT PART NUMBERS:
715582-5010S
841297-5005S
